Braq Cube® 4C & 4CA

设计师 Black Tank

规格很重要- 而 Braq Cubes(布拉格立方)具有其它装置无法实现的性能!Braq Cube® 4C 在一个仅5英寸的立方体中创造出100 瓦的混色输出!尽管其尺寸小得令人惊奇,Black Tank 设计的 Braq Cube® 发出更多的光,可取代演播室、舞台、电影布景或商业建筑装置中用的传统洗光。通过使用领先的 RGBW 四芯发射器, Braq Cube® 4C 可发出绚丽夺目的饱和中性色和淡色调色彩,只须触摸一下按扭即可调出。由于采用了高品质发射器,Braq Cube® 4C 还能混调出一种优于其它混色光中出现的不太好看的混合式琥珀色光的“正白光”。这种单芯片光学设备消除了多色阴影,在设计师需要时可创造出一种强大的混合充分的色洗 效果。

颜色与控制

利用RGBW发光器,Braq Cube® 4C能轻松混合正确的颜色。 然而,发光质量才是其出类拔萃之处。 采用Osram的最新一代4通道芯片,Braq Cube 4C能达到充分的色彩混合,实现出色的渲染效果和单个无边缘的阴影。 配以完整的20°、40°和60°光束散射角透镜组合,Braq Cube® 4C允许灯光设计师随心所欲地控制现代光源。

创新的紧凑设计

Braq Cube®采用优雅坚固的设计,空间浪费很少。 我们有获专利的独特热管理系统,可将总共100瓦的LED灯封装在很小的5英寸立方体中,是市场上同级100W灯所需空间的几分之一。 Braq Cube®具有耐用、可靠、低价的优势,而且不以牺牲质量为代价,完全符合高要求的照明专业人士对于质量的期望。

满足未来需求

两个型号使用通用的散热器、电源和电子件,因此Braq Cube®灯具使我们的工程师可以快速响应LED技术改进,无需对基础设备进行大的改变。 Braq Cubes在内部完全连接,允许在几分钟内安装新的LED板。 该特性特别方便维修和升级,或者从WNC到4C的现场转换。

先进但不失简单

Braq Cube®可随时用于要求最严格的专业环境;它采用Positive Lock式Neutrik Powercon连接器(电源直通)以及5针的DMX输入/输出XLR连接器,以实现简单的菊花链配置。 采用两个 8 位或 16 位分辨率高速 DMX512 通用单元,当您在控制台上调光时完全不会闪烁。 选用的“灯丝模式”可设置为模拟即将变暗的白炽灯的光线渐变。 如果不想配合 DMX 使用,可以通过一个直观的全文本 LCD 控制面板调入亮度和色温。

多用途,模块化

Braq Cube结构小巧,可内置到舞台布景或拱腹中,重量足够轻,可用作轨道灯。 新颖的轭圈设计可以使用 C 形夹具轻松悬挂 CUBE,将它们配置到线性条带或堆叠阵列中,安装在 C 形支架和地面凸耳上,转换成顶棚安装式或使用轨道悬挂适配器改装 — 几乎可以满足安装人员所需的任何安装形式。

LED:

7 x 12W Osram Ostar multi-chip

Output:

4C: 1800 Lumens (no lens)
4CA: 1710 Lumens (no lens)

Lumen Maintenance:

80,000 hours B10 L70 at 25°C
(LM79-08 Standard)

Color Range:

4C: Red/Green/Blue/White (6500K)
4CA: Red/Green/Blue/Amber

Operation:

DMX: 8 or 16 bit DMX512
Manual: Full Text LCD user interface sets color output

Input Voltage:

90 - 240 VAC 50/60Hz

Power/AC Input:

Neutrik Powercon

Data:

5-pin XLR Male, 5-pin XLR female – DMX

Power Consumption:

100 Watts at maximum output

Operating Temperature:

-13° to 113° F (-20° to 45° C)

Humidity:

0 - 95% non-condensing

Dimensions:

5in x 5in x 5.3in (127mm x 127mm x 135mm)

Weight:

3.5 lbs (1.6 kg)

Housing:

Powder coated aluminum extrusion (1/8 in wall)

Approvals and Listings:

FCC Class A Radiated and Conducted
ETL / UL Standards 1573 and 8750
cETL / CSA C22.2#166-M1983
CE
RoHS Compliant
IP20 Rated



Dry locations only



Features and Benefits:

  • Powerful, quad-chip, RGBW or RGBA LED emitters blend light without shadow fringing
  • RGBW color mixing offers a dramatic, saturated palette that is balanced with a subtle, nuanced range of tints and accent colors
  • RGBA color mixing offers richly saturated colors and full spectrum, warm white light color temperatures
  • Optional "Filament Mode" mimics the delayed blackout glow of an incandescent lamp
  • Low 100W power consumption allows more than 20 fixtures on a single 20A circuit
  • No expensive power supply unit or ballast required. Directly connect 90-240 VAC mains power
  • Comes with a complete spread lens set including: 20° spot, 40° medium and 60° wide flood
  • Power Cord configurations include:
    • 8-ft AWG16 cord with Neutrik Powercon and 3-prong Edison ends
    • No cord
  • Optional Power Cord Accessories include:
    • 8-ft AWG16 cord with Neutrik Powercon, 3-prong Edison ends, and an in-line switch

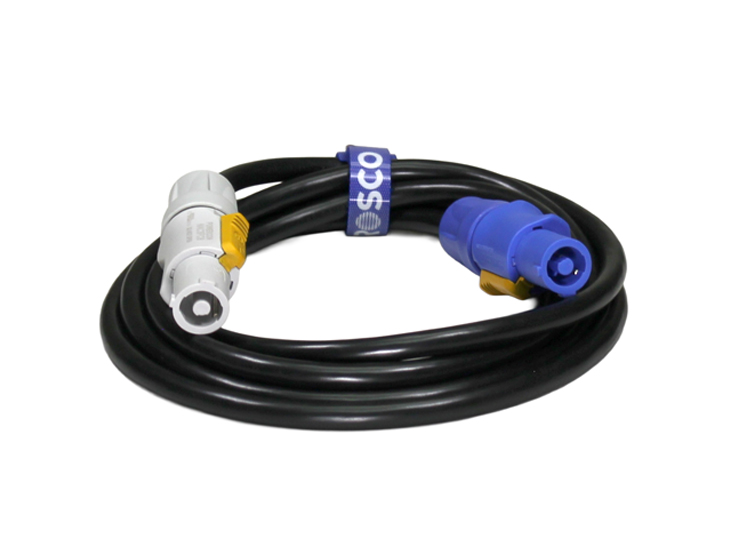

    • 8-ft AWG16 cord with Neutrik Male/Female ends (Powercon Pass-Thru)
  • Flicker free DMX dimming (0 ~ 100%) and control
  • Intuitive, full text LCD panel for manual operation
  • Compact design suitable for mounting in small spaces or installations with low ceilings
  • Track lighting mounting adapters available for many common track brands or with our fully integrated Rosco Track.
  • Auto temperature sensing with fault detection and protection
  • ETL/CE listed



Product Number

515 90100 1014

Braq Cube® 4C w/Power Cord - Black

515 90100 2014

Braq Cube® 4C w/Power Cord - White

515 90100 1114

Braq Cube® 4C No Power Cord - Black

515 90100 2114

Braq Cube® 4C No Power Cord - White

515 90100 1040

Braq Cube® 4CA w/Power Cord - Black

515 90100 2040

Braq Cube® 4CA w/Power Cord - White

515 90100 1140

Braq Cube® 4CA No Power Cord - Black

515 90100 2140

Braq Cube® 4CA No Power Cord - White




Braq Cube® Manual

Braq Cube® 4C & 4CA Data Sheet

Braq Cube® 4C & 4CA Specification Language

Braq Cube® 4C Video

Rosco Cube Family Comparison Guide

Braq Cube® Profile Drawing

Braq Cube Profile Drawing (.dxf)

Miro Cube®, Braq Cube® CE Declaration of Conformity

Rosco Miro Cube®, Braq Cube®, Pica Cube Warranty

Rosco and The Black Tank – A Strategic Partnership

Miro/Braq Preset Remote Data Sheet

Miro/Braq Preset Remote Manual

Braq Cube® 4C IES File – All Colors

Braq Cube® 4CA IES File – All On Native

Braq Cube® 4CA IES File – Full Amber No Diffuser

Braq Cube® 4C IES File – Red Only

Braq Cube® 4C IES File – Green Only

Braq Cube® 4C IES File – Blue Only

Braq Cube® 4C IES File – White Only

Case Study: 3 Ways Designers Maximized The Power Of Rosco’s Compact Braq Cube® 4C

Case Study: Al Hadath Elevates Their New Broadcast Studio With Rosco LED Technology

Case Study: Lighting Between The Scrims With Rosco Braq Cubes®

Case Study: Rosco Provides Broadcast Lighting Solutions For Al Arabiya’s New Studios

Case Study: Illuminating The Truth With Adaptable Exhibit Lighting Solutions From Rosco

Case Study: Seattle Channel Gets A Lighting Makeover

Case Study: Stop Motion Lighting Solutions For SuperMansion

Case Study: The Go-To Fixture Of The Modern Broadcast Studio – Rosco Braq Cube®

Case Study: Braq Cubes® Illuminate Bob’s Petite Theater At Oxy Arts

Case Study: How The Rosco Braq Cube® Became The Footlight Of Hadestown

Case Study: Christie’s Captures The Magic Of Having A Dinosaur In The Building With Rosco Braq Cubes®

Dramatic Architectural Lighting Solutions Brochure
